0.5um Switch pHEMT



GCS has developed a low-cost, high-performance pHEMT process specifically for cell phone and WLAN RF Switch and LNA applications. The process was designed with multiple gates to achieve low insertion, high isolation and low harmonics. Semiconductor resistor and MIM capacitor are included. The process has been qualified and in production since 2003.

Download PDF

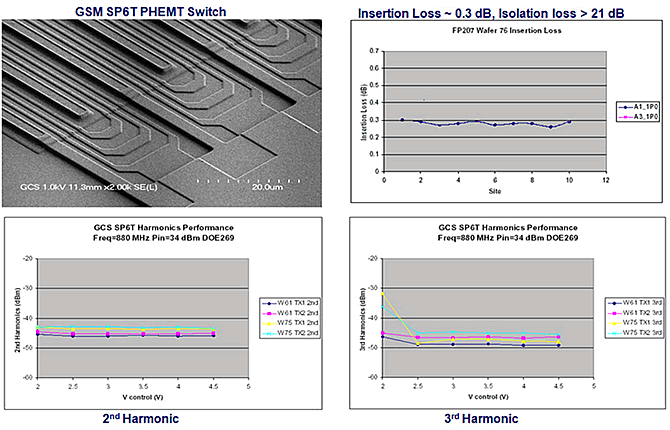

0.5um Switch PHEMT
