0.25um ED_mode Low Noise pHEMT


  • Optical Gate Lithography for Low-Cost Manufacturing
  • Ideal for Power Amplifiers, Switches & LNAs
  • Meets or Exceeds Most Environmental Test Requirements

For Applications up to Ka-Band:
  • High Power Amplifiers
  • Low Noise Amplifiers
  • Gain Blocks
  • Transceiver Components
  • Switches

Features:
  • AlGaAs/InGaAs/GaAs Material
  • Optical T-Gate Stepper Lithography
  • Double Recess Gate
  • Low-Cost Production Process
  • Excellent Reliability
  • Backside Round and Slot Via Process

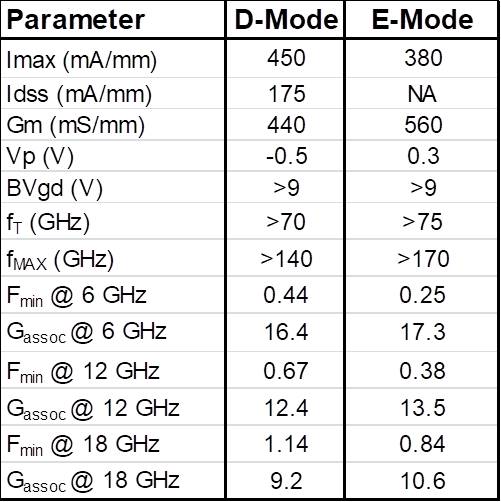

Typical Device Performance:

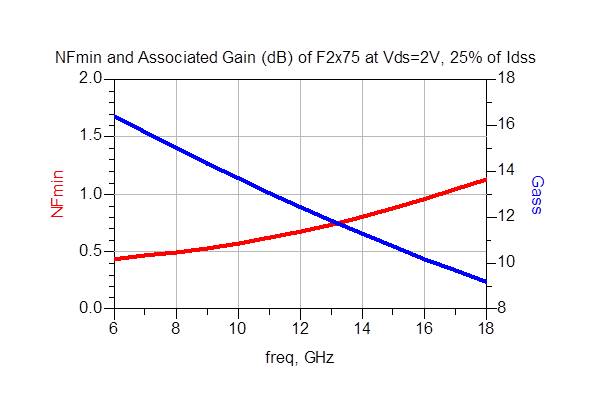

D Mode:

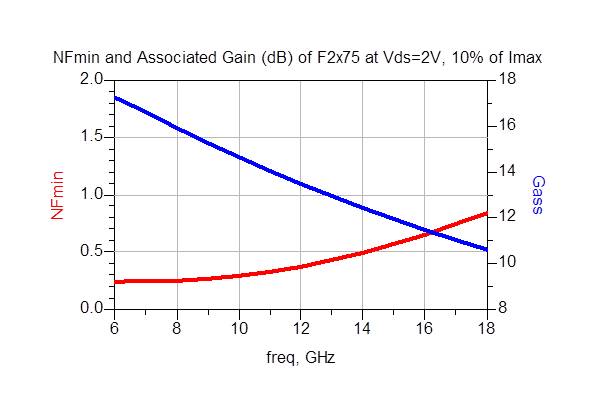

E Mode:
