InP HBT Technologies



InP HBT Technologies

For very high speed mixed-signal ICs for test instruments and and 40-100G Transimpedance Amplifier (TIA) for optical fiber communication applications, two generations (5 processes) of InP HBT technologies have been developed with &402;T from 110 GHz to 330 GHz. Superior performance has been demonstrated by customers and several has been in production since 2007.



HBT Parameters Units DHBT1 DHBT2 DHBT3 DHBT3B DHBT5
Emitter width (um) 1 0.8 0.8 0.6 1.6
Typical operating current density Jctyp (mA/&181;m2) 1 2 2 2 1
Maximum operating current density Jcmax (mA/&181;m2) 2 3 3 3 1.5
Typical operating voltage Vce (V) 1.5 1.5 1 1 3.5
Base-collector breakdown voltage BVcbo (V) 8 5.5 4.5 4.5 15
Collector-emitter breakdown voltage BVceo (V) 7 4.5 3.8 3.8 11
Emitter-base breakdown voltage BVbeo (V) 3.2 3.2 3.2 3.2 3.2
Thermal resistance Rth (°C/mW) 3 5.3 5.3 5.3 2
&402;T (at max allowed operating current) (GHz) 150 240 290 320 110
&402;max (at max allowed operating current) (GHz) 180 200 250 330 150

DHBT5
  • DHBT5 InP HBT technology is ideal for 5G PA applications at mm-wave frequency
  • High breakdown voltage
  • High power density, high gain and efficiency, good linearity
  • Proven reliability
  • Available for immediate design

Typical Applications:
  • mm-wave MMICs:
    • 5G power amplifier
    • Integrated IC with digital control

Features:
  • High &402;T and &402;max
  • High power density
  • Positive bias voltage
  • Can add digital functions

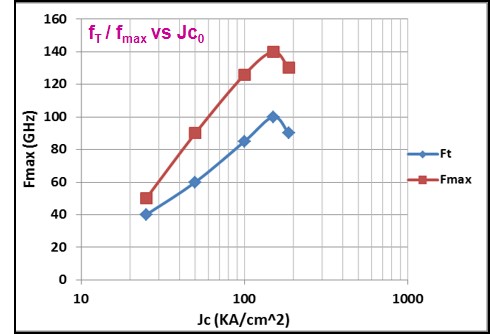

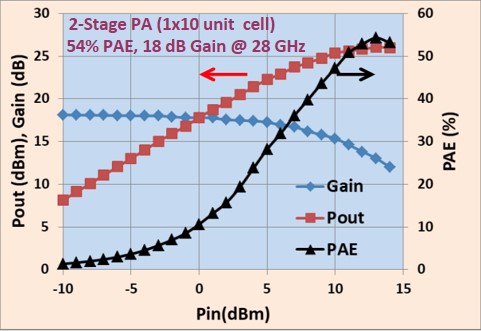

DHBT5 device performance:
