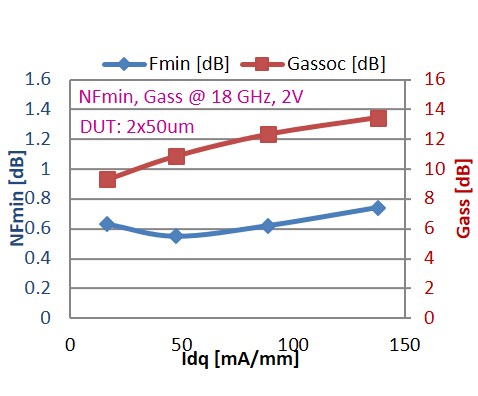

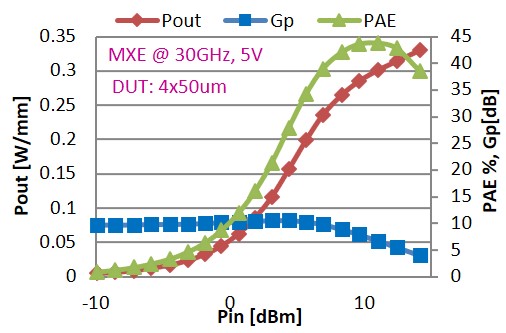

Pure-play Wafer Foundry   Pure-play Wafer Foundry Technology Overview GaAs & GaN RF Technologies InGaP HBT Super High ƒmax HBT GaAs pHEMT 0.5um D-Mode T-Gate pHEMT 0.5um Switch pHEMT 0.25um E/D-mode LN pHEMT 0.25um D-Mode T-Gate pHEMT Power Process 0.15um Low-Noise & Power pHEMTs HFET GaN/SiC HEMT Integrated Passive Devices THz Schottky Diode Varactor Diode InP HBT Technologies GaN/SiC HEMT Technologies BAW Technologies Optoelectronics Technologies Foundry Services   Home > Pure-play Wafer Foundry > Technology > GaAs & GaN RF Technologies> Varactor Diode   0.1µm Low-Noise & Power pHEMTs​       EBL Gate Lithography Ideal for mmW Transceiver Components Suitable for Commercial and A&D Applications Meets or Exceeds Environmental Requirements For Applications up to Ka-Band: Transceiver Components High Power Amplifiers Low Noise Amplifiers Gain Blocks Switches Features: EBL Gate Lithography Excellent Reliability Backside Round & Slot Via Process Hot Via Process High Level MMIC Implementation Typical Device Performance: Parameter LN Power Imax (mA/mm) 440 430 Idss (mA/mm) 220 322 Gm (mS/mm) 430 383 Vp(V) -0.5 -1.03 BVgd (V) >7 >16 ƒT (GHz) 80 58 ƒmax (GHz) 170 >210 P_density (mW/mm) N/A 630 NFmin @ 6 GHz [dB] 0.4 0.49 Gass @ 6 GHz [dB] 17.7 14.8 NFmin @ 12 GHz [dB] 0.47 0.76 Gass @ 12 GHz [dB] 12.5 10.9 NFmin @ 18 GHz [dB] 0.55 0.98 Gass @ 18 GHz [dB] 11.0 9.3 NFmin @ 30 GHz [dB]* 1.2 N/A Gass @ 30 GHz [dB]* 9.0 N/A * extrapolated 0.1µm Power pHEMT Process: 0.1µm LN pHEMT Process:
