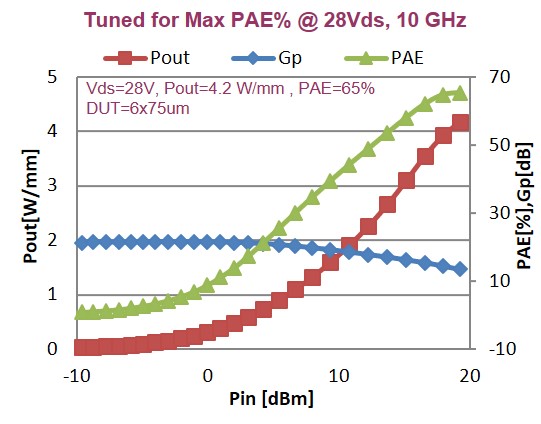

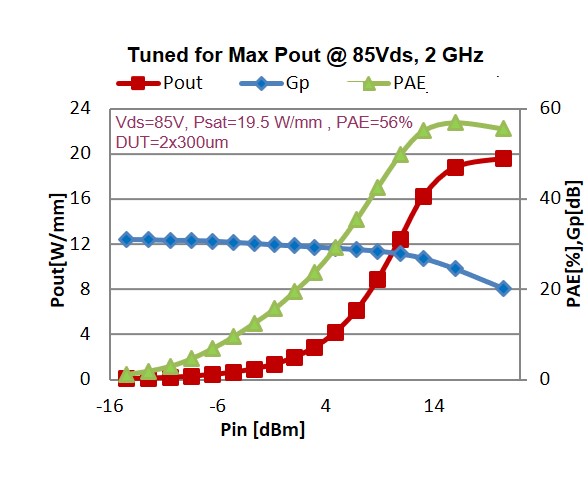

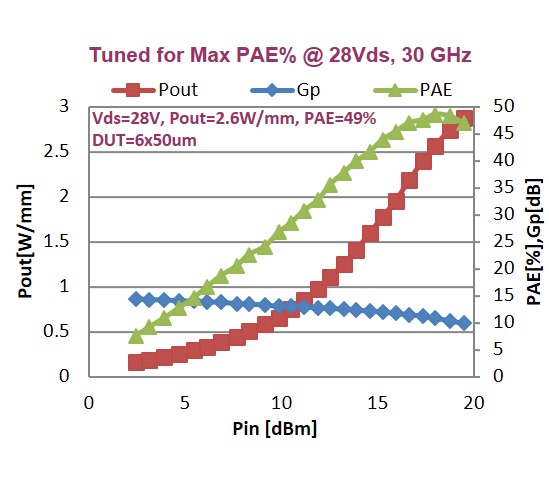

Pure-play Wafer Foundry   Pure-play Wafer Foundry Technology Overview GaAs & GaN RF Technologies InP HBT Technologies GaN/SiC HEMT Technologies BAW Technologies Optoelectronics Technologies Foundry Services   Home > Pure-play Wafer Foundry > Technology > GaAs & GaN RF Technologies> GaN/SiC HEMT   GaN/SiC HEMT       0.25/0.4/0.15µm GaN HEMT Process Wide band-gap GaN HEMT A Combination of high power density, high efficiency, and wide bandwidth Ideal for 5G wireless infrastructure and radar applications (PA and switches) 15, 28, 48, and 85V PA operations Typical Applications: 5G wireless infrastructures Amplifiers with DPD for FDD, TDD conditions Military/commercial radar Military electronic warfare (EW) 5G Doherty amplifier Features: 0.15/0.25/0.4 µm T-Gate lithography - with source/gate field plates Psat: ~6 W/mm @ Vds = 28 V Psat: ~11 W/mm @ Vds = 48 V High drain efficiency: > 80% High breakdown voltage: > 200 V Excellent thermal conductivity Options of round or slot through-wafer vias Typical GaN Device Performance: Parameter 0.15um 0.4um 0.25um Imax (mA/mm) 1150 1190 1200 Idss(mA/mm) 910 730 750 Gm (mS/mm) 343 300 330 Vp (V) -3 -2.6 -2.4 BVgd (V) 80 >200 >150 MAG @ 2.0 GHz (dB) 16 >24 >26 ƒT(GHz) 42 19 23 ƒmax(GHz) 170 62 100 Pout (W/mm)@3.5 GHz,Vds-48V N/A 13.5 11.0 PAE(%)@3.5GHz, Vds-48V N/A 81.0 79 Pout (W/mm)@15 GHz,Vds-28V N/A N/A 4.0 PAE(%)@15GHz, Vds-28V N/A N/A 45 Pout (W/mm)@10 GHz,Vds-48V N/A 10.3 10.8 Max. Drain Eff. (%) @10 GHz,Vds-48V N/A 57 65 Nfmin@10 GHz -28V N/A 1.15dB 1.1dB MXP Psat (W/mm) @ 18GHz, Vds = 28V 5 N/A N/A MXE PAE (%) @ 18GHz, Vds = 28V 60 N/A N/A MXP Psat (W/mm) @ 30GHz, Vds = 28V 4.6 N/A N/A MXE PAE (%) @ 30GHz, Vds = 28V 49 N/A N/A NFmin (dB) @ 18GHz, Vds = 20V 0.77 N/A N/A *Measured at 2 GHz 0.15um GaN/SiC HEMT: 0.25um GaN/SiC HEMT: 0.4um GaN/SiC HEMT: Available Round & Slot Through Wafer Vias:
