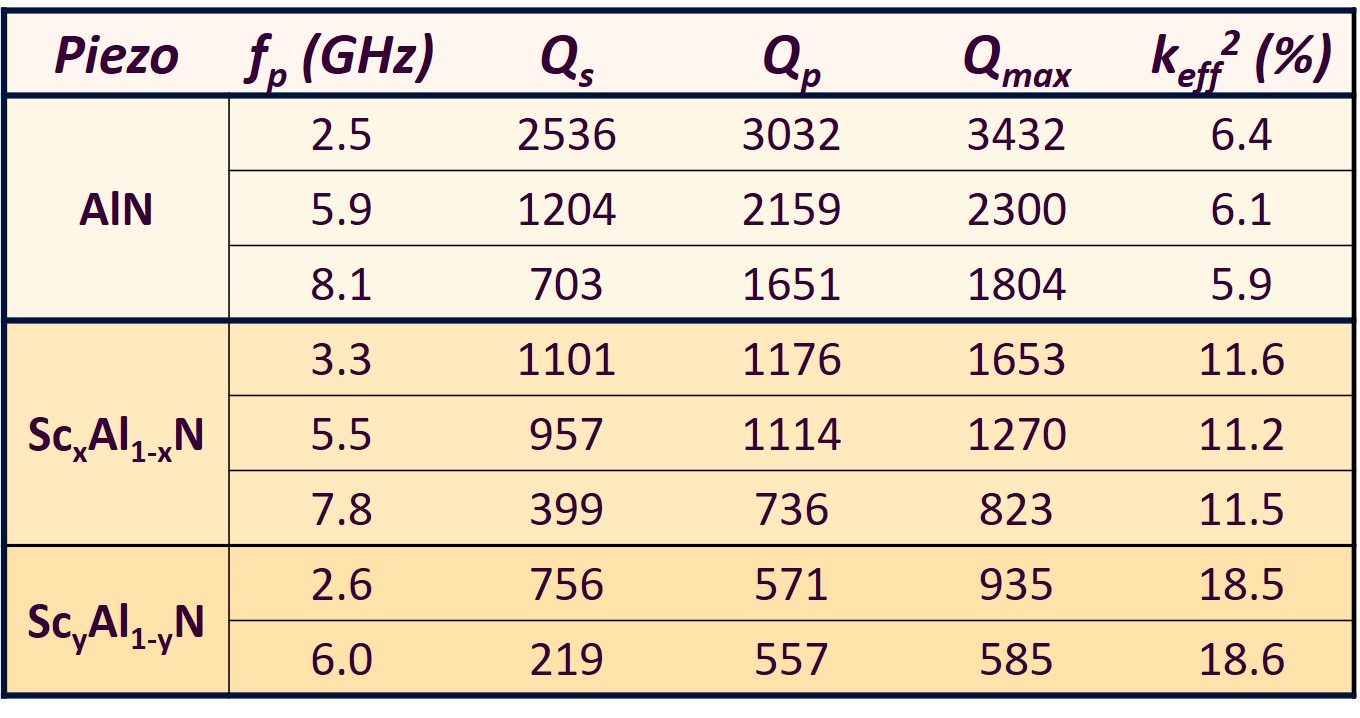

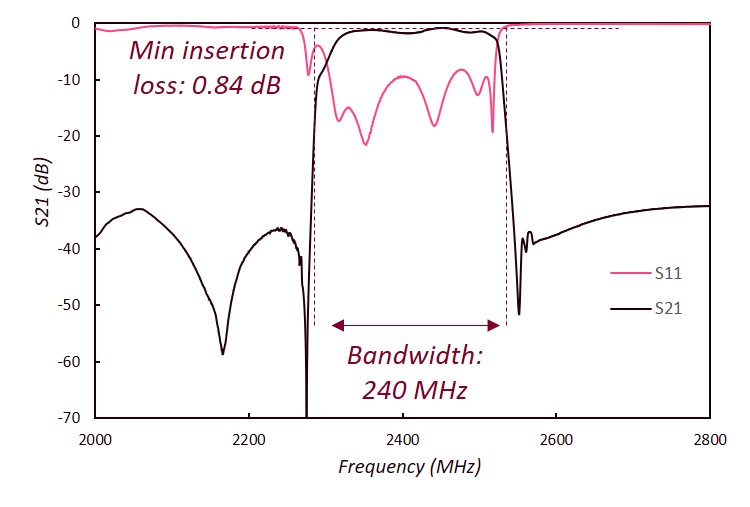

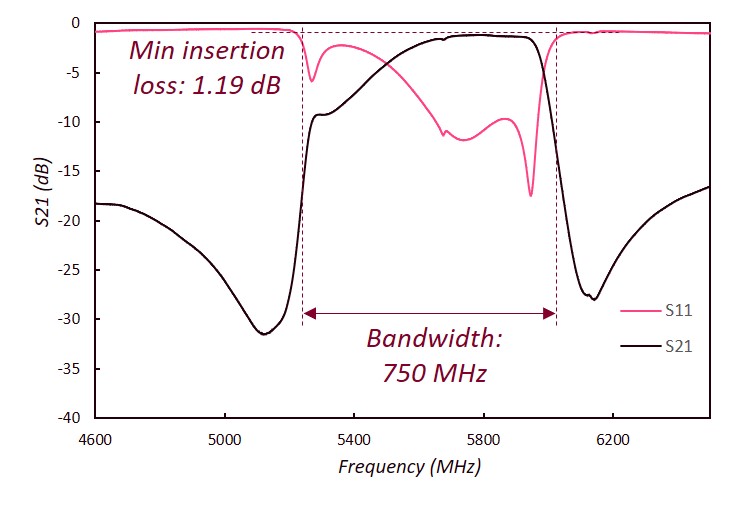

Pure-play Wafer Foundry   Pure-play Wafer Foundry Technology Overview GaAs & GaN RF Technologies InP HBT Technologies GaN/SiC HEMT Technologies BAW Technologies Optoelectronics Technologies Foundry Services   Home > Pure-play Wafer Foundry > Technology > GaAs & GaN RF Technologies> GaN/SiC HEMT   BAW Technologies       BAW Filter Process AlN and ScAlN BAW Resonator Technology Ideal for High Performance RF Filters in Mobile Communication Systems Low Cost and High Volume Manufacturing Wafer Level Packaging (WLP) Available Typical Applications Commercial: 4G LTE, Sub-6 GHz 5G, WiFi-6E, WiFi-7 Filters Defense/Aerospace: X-band Filter Process Features Unique patent-protected BAW process AlN resonators for narrowband filters: Keff2 of 6% Q-factor up to 3000 Frequency up to 8 GHz ScAlN resonators for wideband filters: Keff2 of 20% Q-factor up to 1800 Frequency up to 7.5 GHz Frequency trimming accuracy: +/- 0.1% High power-handling capabilities: 45 dBm at 2.5 GHz 35 dBm at 5 GHz Wafer level packaging Resonator Performance 2.4 GHz ScAlN Demonstration Filter 5.7 GHz ScAlN Demonstration Filter
